Characteristics

The SCV acoustic silencers with parallel cells from SINTEC have been specially designed for ventilation ducts.

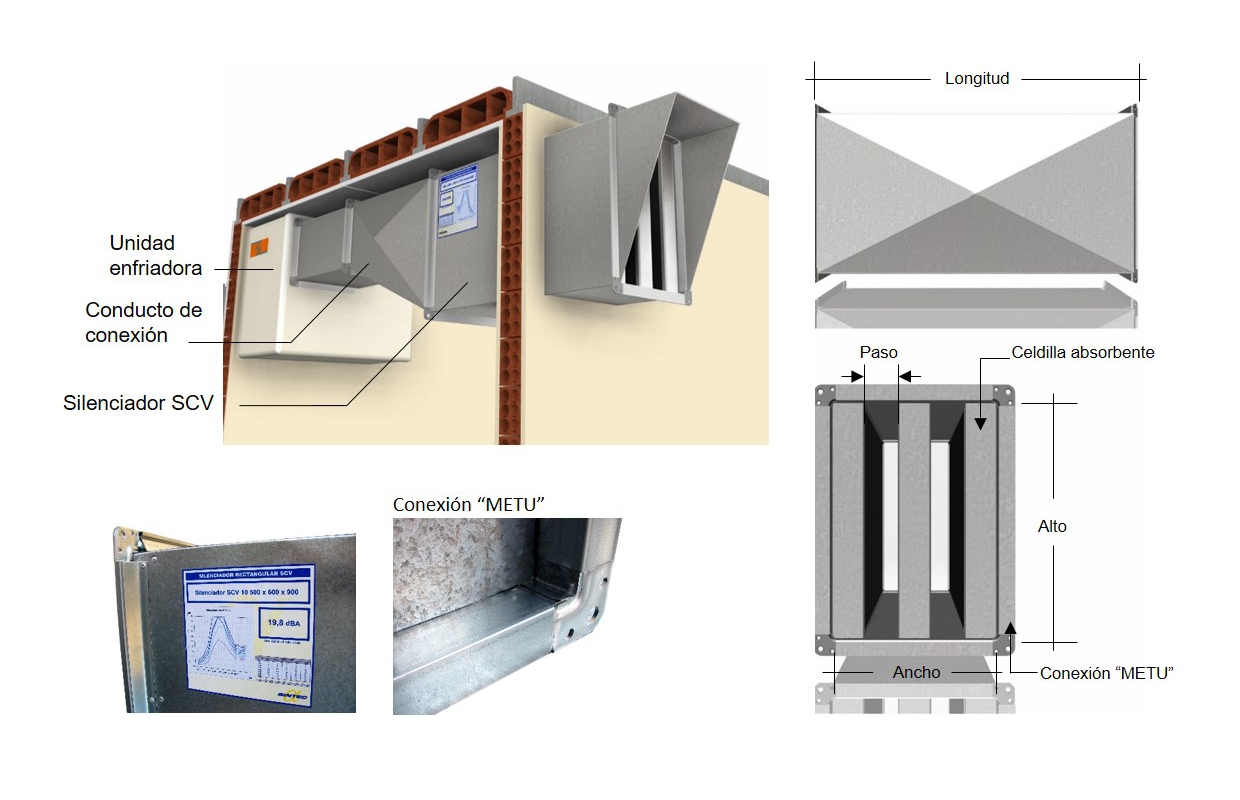

Its construction, as in SPI silencers, is based on the layout of cells made of absorbing material, which are placed in between the air passages.

The cells from SCV silencers always have a thickness of 100mm. When air and sound waves go through the cells, they are reduced due to the dissipative action of the absorbing material.

The dampening performance of a silencer depends on the separation between the cells and its length, which is equal to the distance that the air must travel when going through.

The width of each cell is fixed to 100mm, whereas the separation between cells is made according to the following standards: 50, 60, 70 ,80, 90 and 100mm.


Composition

The cells are made of galvanised plate and rock wool  featuring a protecting veil on both faces. The envelope of the cells has also been made of galvanised plate. This set is reinforced on the perimeter edges with two METU-type connecting flanges of 30mm, which are also used as fixing elements for the pipes.

Data sheet

Manufacturing

At our facilities we have the latest technology and machinery necessary to design and manufacture all our products with absolute precision.

To obtain the desired results, it is essential to adapt the product to the specific needs of the client.

pixelcut fabricacion 500x375 .jpeg

Facility

We design, manufacture and install bespoke solutions, according to the project requirements and the needs of the client.

Our fitters, alongside the installation control technicians, will complete any acoustic solution you need.

pixelcut instalacion silenciadores 500x375.jpeg

Applications

Industrial refrigeration.

Ventilation systems. .

Air renewal in technical rooms...

Ventilation networks with rectangular ducts.

Acoustic properties

SCV 5
SCV 5
SCV 6
SCV 6
SCV 7
SCV 7
SCV 8
SCV 8
SCV 9
SCV 9
SCV 10
SCV 10
